Broadcom

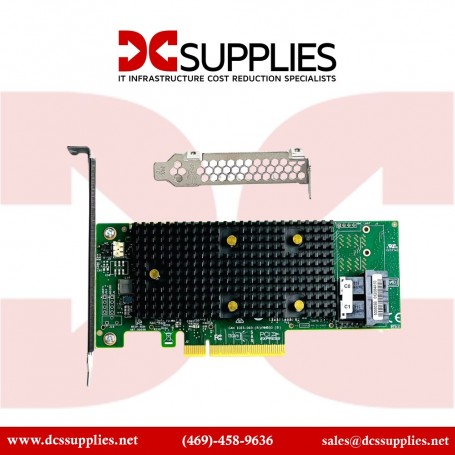

9440-8i LSI MegaRAID 8-Port Tri-Mode Storage Network Adapter
The Broadcom 9440-8i LSI MegaRAID Tri-Mode Storage Network Adapter delivers enterprise-class RAID protection and performance with support for SAS, SATA, and NVMe storage devices. Designed for demanding data environments, this 8-port Network Adapter ensures high availability, scalability, and flexibility for mission-critical workloads.
Features
Powered by LSI MegaRAID technology, the Broadcom 9440-8i supports Tri-Mode architecture, enabling connectivity to SAS, SATA, and NVMe drives through the same Network Adapter. This future-proof design consolidates multiple storage interfaces while providing robust RAID levels 0, 1, 10, and 5 to protect data and maximize storage performance.
Advanced Options
Featuring 8 internal ports with dual Mini-SAS HD (SFF-8643) connectors, the Network Adapter supports up to 240 devices, including HDDs, SSDs, and NVMe drives. With a PCI Express 3.1 x8 host interface and transfer rates of up to 12Gb/s per SAS lane, the 9440-8i provides the speed and scalability enterprises need for databases, virtualization, and cloud deployments.
Product Key Features
-
Tri-Mode storage support: SAS, SATA, NVMe
-
8 internal ports with dual SFF-8643 connectors
-
PCI Express 3.1 x8 interface
-
Data transfer rate up to 12Gb/s per SAS port
-
Supports up to 240 devices
-
Hardware RAID support (RAID 0, 1, 10, 5)
-
Optimized for enterprise servers, high-performance storage, and cloud computing
-
Backed by Broadcom proven MegaRAID technology
Reliability & Performance
The Broadcom 9440-8i is engineered to provide high reliability and data protection with hardware RAID and enterprise-class fault tolerance. Its Tri-Mode functionality allows IT administrators to combine NVMe SSD performance with SAS/SATA storage capacity, delivering optimal balance between speed and cost-efficiency. Whether running transactional databases, virtualization clusters, or cloud storage, the 9440-8i ensures consistent throughput and maximum uptime.
Key Features
-
Model: Broadcom 9440-8i
-
Controller: LSI MegaRAID
-
Category: Tri-Mode RAID Storage Network Adapter
-
Ports: 8 internal ports
-
Host Interface: PCI Express 3.1 x8
-
Transfer Speed: Up to 12Gb/s per SAS port
-
RAID Levels: 0, 1, 5, 10
-
Supported Devices: Up to 240 SAS/SATA/NVMe devices
-
Connectors: 2 × Mini-SAS HD (SFF-8643)
-
Compatibility: HDDs, SSDs, JBODs, NVMe SSDs
-
Dimensions: 6.6 × 2.7 in (167 × 69 mm)
-
Warranty: Manufacturer Warranty Included
