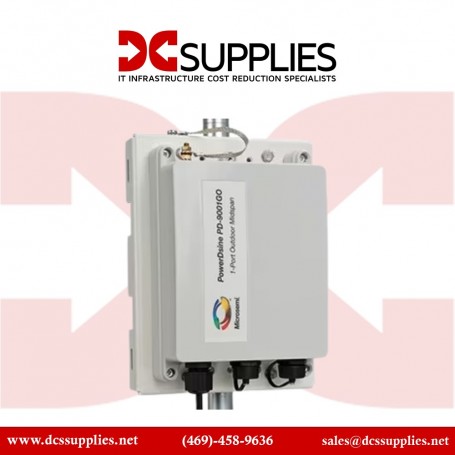

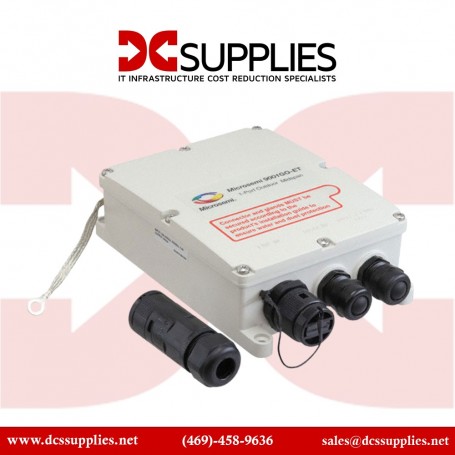

Extreme Networks PD-9001GO-ENT
Outdoor 802.3at (PoE+) Single-Port Midspan PoE Injector – 30 W
The Extreme Networks PD-9001GO-ENT is an outdoor-ratedPoE Injector designed for delivering power and data todevices like wireless access points and IP cameras in harsh environments. Compliant with IEEE 802.3af/at standards, it supplies up to 30 W over a single Gigabit Ethernet cable, simplifying deployment by avoiding new electrical infrastructure. The rugged IP66 enclosure includes built-in surge protection for both AC and PoE ports, safeguarding connected hardware from outdoor electrical hazards. Ideal for outdoor deployments where both reliability and environmental resistance are essential.
Features
The PD-9001GO-ENT is a single-port outdoor midspan PoE Injectorthat meets IEEE 802.3at (PoE+) requirements, delivering up to 30 W of power through a single Ethernet cable while also passing data (10/100/1000 Mbps) . Its IP66-rated enclosure and extended operating temperature range (approximately –40 °C to +65 °C) ensure reliable performance in outdoor settings Equipped with surge protection standards including GR-1089-CORE, ITU-T K.20, and compliant with CE/FCC regulations, the unit offers robust protection against power fluctuations and electrical surges . Its compact, though rugged, form enables flexible mounting directly on walls or poles, making it ideal for powering outdoor APs, cameras, or other PoE devices. Installation is plug-and-play, needing only AC input (100–240 V) to energize PoE output, streamlining deployment without modifying the existing network
Advanced Options
The PD-9001GO-ENT offers exceptional reliability in demanding outdoor network scenarios. Its ruggedized IP66 construction protects sensitive electronics from dust, rain, and UV exposure, while the extended temperature range ensures stable operation in both freezing cold and extreme heat . Built-in surge protection on both AC and PoE ports defends against voltage spikes, significantly enhancing device lifespan and reducing maintenance in outdoor deployments
Product Key Features
-
IEEE 802.3at (PoE+) compliant – delivers up to 30 W
-
Outdoor-rated, IP66 enclosure, wide temperature operation (-40 °C to +65 °C)
-
Single Gigabit Ethernet data and power output (10/100/1000 Mbps)
-
Integrated surge protection on AC and PoE ports (GR-1089-K.20/IP66)
-
Compact, wall or pole-mountable rugged design
-
1-year limited warranty
Reliability & Performance
By combining both power and data delivery in one streamlined cable, it eliminates the need for separate power runs, conserving installation time and labor. The simplicity of a plug-and-play setup—paired with Microsemi engineering—makes it a trusted choice for mission-critical applications where uptime and resilience are non-negotiable.
Key Features:
-
Provides 30 W PoE+ power over single Gigabit Ethernet
-
Outdoor-rated IP66 housing
-
Wide operating temperature (-40 °C to +65 °C)
-
10/100/1000 Mbps data throughput
-
Built-in surge protection (AC and PoE)
-
Mountable on wall or pole
-
1-year limited warranty
-
RoHS and WEEE compliant
