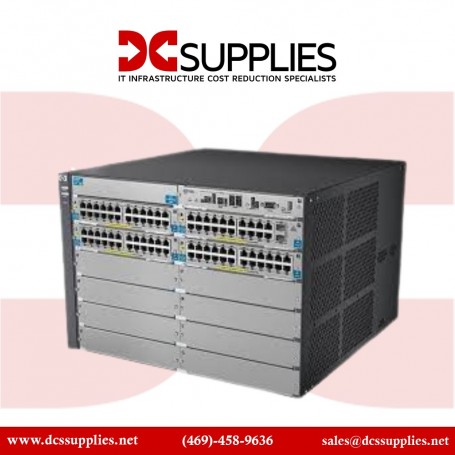

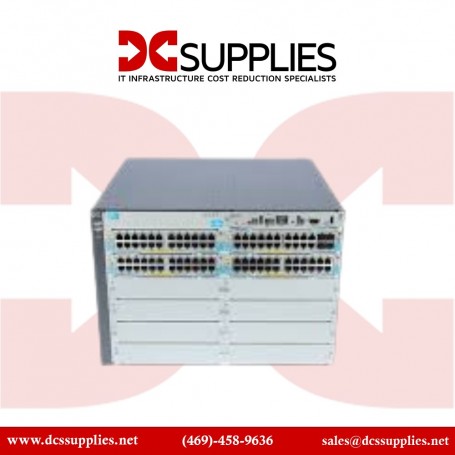

HPE J9532A
5412‑92G‑PoE+‑2XG v2 zl Layer‑4 Managed Ethernet Switch (Premium Software)
The HPE J9532A (model 5412‑92G‑PoE+‑2XG v2 zl) is a high-density, Layer‑4 managed switch designed for enterprise and campus environments. It features 92 autosensing Gigabit RJ‑45 PoE+ ports along with dual 10 GbE SFP+ uplinks. Powered by HPE ProVision ASIC and licensed with Premium software, this switch delivers advanced QoS, robust security, and flexible PoE deployment. Ideal for powering a large number of access-edge devices—such as APs, IP phones, or cameras—while enabling high-speed uplinks and modular deployment flexibility.
Features
Built on the modular 5400 zl chassis platform, the J9532A provides enterprise-class flexibility with expandable I/O via optional switch modules. Its PoE+ ports supply up to 30 W per port, supported by redundant 1500 W PoE+ power supplies for up to 2760 W budget. The dual 10 GbE SFP+ uplinks facilitate high-speed interconnectivity across data center or aggregation layers. Firmware supports full Layer 3 protocols such as RIP, OSPFv2/v3, static IPv4/IPv6 routing, and multicast control (PIM-SM, IGMPv3) Access and management are secured via SNMP v1–v3, RMON, SSH, SSL, TACACS+, RADIUS, HTTP(S), or Telnet interfaces.
Advanced Options
Engineered for large-scale PoE environments and enterprise backbone deployments, the J9532A delivers 758.4 Gbps switching capacity and up to 564.2 Mpps forwarding performance
Product Key Features
-
92 × Gigabit PoE+ RJ‑45 ports (IEEE 802.3at up to 30 W each)
-
2 × 10 GbE SFP+ uplink ports (modular interface)
-
Layer 3/4 switching with Premium licensed features
-
High PoE budget: up to ~2760 W with dual power supplies
-
Enterprise routing (RIP, OSPFv2/v3, static IPv4/IPv6) and multicast support
-
Secure management: SNMP, SSL, SSH, RADIUS, TACACS+, RMON
Reliability & Performance
Its robust chassis supports redundant hot-swappable power supplies and optimized thermal management. With the ProVision ASIC, QoS and classification are implemented per port and per queue, offering granular traffic control. Certified for HPE AllianceOne and IMC integration, this modular switch supports stackable performance and investment protection for evolving enterprise fabric infrastructure.
Key Features :
-
92 autosensing Gigabit PoE+ ports (30 W per port)
-
Dual 10 GbE SFP+ uplink ports (modular slot)
-
Layer 3/4 (Premium) routing: OSPFv2/v3, RIP, static IPv4/IPv6
-
Stacking and Fabric extension via additional modules
-
Advanced security: ACLs, RADIUS/TACACS+, SSH/SSL, SNMPv3
-
Multicast and management via SNMP, RMON, CLI, Web, HTTP(S), Telnet
