HPE J9584A

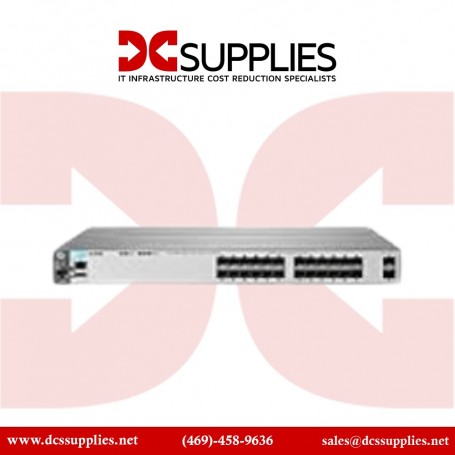

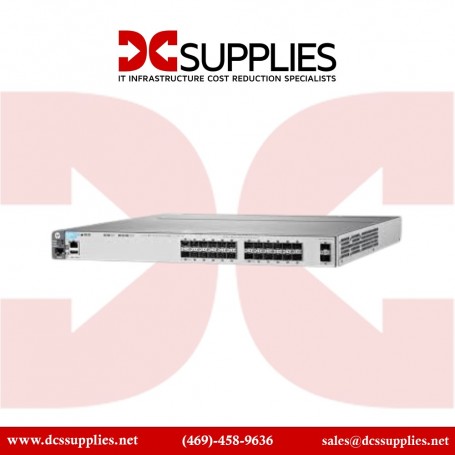

Aruba 3800-24SFP-2SFP+ Layer 3 Managed Ethernet Switch
The HPE Aruba 3800-24SFP-2SFP+ (J9584A) is a fully managed Layer 3 Gigabit Ethernet switch built for enterprise-edge, SMB,and branch office environments. It features 24 SFP-connected Gigabit ports combined with two 10 Gb SFP+ uplinks, offering flexible connectivity for fiber-based access networks. Powered by HPE ProVision ASIC and equipped with 2 GB SDRAM and 4 GB flash, the switch delivers intelligent performance, resilient mesh stacking, and advanced routing capabilities like OSPF, BGP, IPv6, policy-based routing, and more. With a 1U rack-mount design, rich Layer 3 functionality, and resilient architecture, it’s an efficient networking solution for modern, scalable infrastructures
Features
The Aruba 3800 series, particularly the J9584A model, offers robust hardware and rich software for advanced networking. It features 24 SFP ports that support Gigabit connections and two fixed 10 Gb SFP+ uplinks, delivering a switching capacity of 88 Gbps and a forwarding rate of up to 65.4 million pps for low-latency operations . With a MAC address table capacity of approximately 65,500 entries, it efficiently accommodates large network topologies without compromising throughput or reliability The 1U rack form factor blends a powerful ProVision-based architecture with advanced stacking—referred to as FlexChassis Mesh—that delivers chassis-like redundancy and simplified scale-out deployment . Management is comprehensive, supporting CLI, SNMPv1-v3, RMON, HTTP/HTTPS, and more, while routing capabilities span OSPF, RIP, PIM, VRRP, IPv6, and policy-based routing
Advanced Options
Additional features include VLAN, ACLs, QoS, jumbo frame support, DoS protection, and stacking module extensibility, aligning well with the needs of dense, resilient network edge deployments The J9584A excels in delivering fast, reliable network services with enterprise-grade consistency. Its cutting-edge ProVision ASIC ensures low-latency packet processing and stable performance across all ports. With switching capacity of 88 Gbps and forwarding rates up to 65.4 Mpps, it maintains throughput even under heavy packet loads. The MAC address table can store up to ~65,500 entries—enabling support for large-scale deployments with diverse hosts and VLANs.
Product Key Features
-
24 × Gigabit SFP ports + 2 × 10G SFP+ uplinks
-
Layer 3 routing: OSPF, BGP, IPv6, PIM, policy-based routing
-
High performance: 88 Gbps switching, up to 65.4 Mpps, < 2.8 µs latency
-
ProVision ASIC with 2 GB SDRAM + 4 GB Flash
-
FlexChassis Mesh stacking for resilient scalability
-
Comprehensive management: CLI, SNMPv1-3, RMON, HTTP/S, rich QoS & security
Reliability & Performance
FlexChassis Mesh stacking introduces a robust high-availability foundation that rivals traditional chassis switches but in a stackable 1U form—facilitating simple expansion and redundancy. Advanced routing and Layer 3 protocols (like OSPF, policy-based routing, IPv6) further ensure flexibility in evolving network topologies. Built-in features such as ACLs, DoS protection, jumbo frame support, and QoS make it resilient to threats and adaptable to enterprise-grade traffic patterns.Powered with 2 GB SDRAM and 4 GB flash, it supports complex configurations, extensive rule sets, and firmware enhancements without performance degradation. With options for lifetime warranty via HPE and solid support for management protocols, the J9584A offers both performance and operational peace of mind for medium to large-scale network edge environments
Key Features :
-
-
24 Gigabit SFP ports + 2 10 Gb SFP+ uplinks
-
Advanced Layer 3 routing (OSPF, BGP, IPv6, PIM, VRRP)
-
88 Gbps switching capacity; 65.4 Mpps forwarding rate
-
2 GB SDRAM; 4 GB Flash; ProVision ASIC engine
-
FlexChassis Mesh stackable resilience
-
Full management: CLI, SNMP, HTTP/S, QoS, ACL, DoS protection
-
