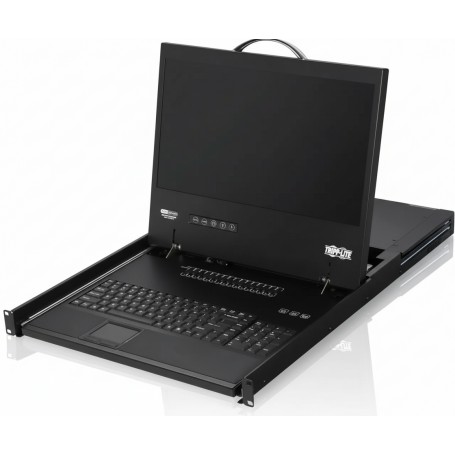

Eaton Tripp Lite B040-016-19 16 Port 1U Rack Mount KVM Console with 19 LCD (B040-016-19)

Eaton Tripp Lite B040-016-19 16 Port 1U Rack Mount KVM Console with 19 LCD

Model No: B040-016-19

$1,679.87

Black Box EMD2000PE-R-P KVM Extender RX VM Access Single-Head PoE DVI-D V-USB 2 Audio

Model No: EMD2000PE-R-P

$1,424.93

Black Box KVS4-2004VX NIAP4 4-Port Dual Head DP CAC Secure KVM Switch

Model No: KVS4-2004VX

$1,361.70

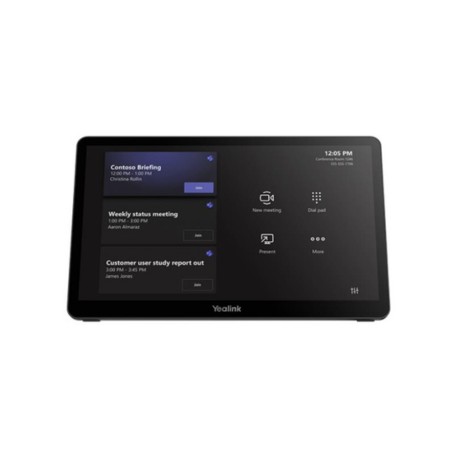

Yealink 1306022 MTouch Plus Video Conferencing Touch Console (1306022)

Yealink 1306022 MTouch Plus Video Conferencing Touch Console

Model No: 1306022

$1,459.00

StarTech CK4-HP204C 4-Port Secure Dual-Monitor KVM Switch

Model No: CK4-HP204C

$1,405.86

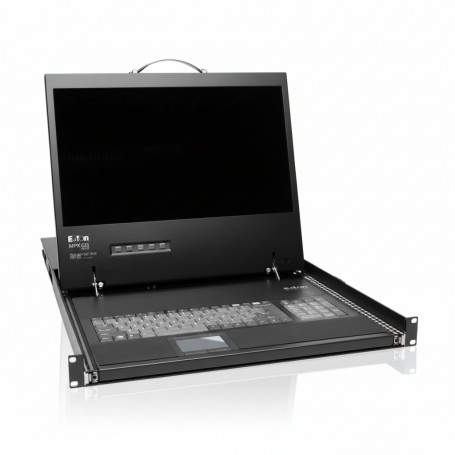

Eaton B070-016-19-IP2 16-Port IP KVM Console 19in LCD (B070-016-19-IP2)

Eaton B070-016-19-IP2 16-Port IP KVM Console 19in LCD

Model No: B070-016-19-IP2

$2,671.57

Black Box KVS4-2004D Secure Switch 4-Port Dual Head DVI-I

Model No: KVS4-2004D

$1,065.05

Opengear OM1204-4E-L-GLB – OM1200 Operations Manager (4 Serial, 4 Ethernet Switch, Global 4G LTE-A Pro)

Overview :

The Opengear OM1204-4E-L-GLB is a compact, enterprise-grade NetOps Operations Manager appliance purpose-built for edge locations, branch offices, and space-constrained network enclosures. Combining 4 software-selectable RJ45 RS-232 serial console ports, an integrated 4-port Ethernet switch (2x RJ45 1GbE and 2x SFP Fiber Combo), and an embedded Global 4G LTE-A Pro cellular modem, the OM1204-4E-L-GLB delivers resilient Smart Out-of-Band (Smart OOB™) management and primary WAN failover on a dedicated management plane.

Powered by an AMD GX-412TC quad-core 1.4 GHz x86 processor with 4 GB DDR3 RAM, 16 GB mSATA SSD storage, and an embedded Trusted Platform Module (TPM 2.0), the OM1204-4E-L-GLB natively supports modern DevOps and NetOps edge automation tools. Network engineers can run Docker containers and Python scripts directly on the appliance to automate configuration and routine troubleshooting workflows. Managed centrally via Opengear Lighthouse software, it ensures secure, uninterrupted out-of-band reachability across remote infrastructure.

Key Features :

  • Integrated Serial, Switching & Cellular: Combines 4 software-selectable RS-232 serial ports, an integrated 4-port Ethernet switch, and global 4G LTE backup into a compact unit.

  • Global 4G LTE-A Pro Wireless Failover: Features an integrated LTE-A Pro module supporting global cellular bands with dual SIM slots for carrier redundancy.

  • Flexible Ethernet & SFP Uplinks: Equipped with 2 x 10/100/1000 Mbps RJ45 ports and 2 x 1GbE SFP fiber combo slots for versatile LAN/WAN configurations.

  • NetOps & Edge Automation: Built on an x86 architecture supporting Docker containers, Python runtime, and Zero-Touch Provisioning (ZTP).

  • Hardware Security: Integrated TPM 2.0 module safeguards encryption keys, system boot integrity, and secure VPN connections.

  • Global Power Compliance: Includes a universal 100–240V AC external power adapter for worldwide deployment.

BrandOpengear
Model NumberOM1204-4E-L-GLB
SKUOM1204-4E-L-GLB
ConditionNew
Dimensions6.7 × 8.7 × 1.7 in
Weight2.2 lbs
Model / Part NumberOM1204-4E-L-GLB
Product SeriesOM1200 Operations Manager
Product TypeNetOps Console Manager / Switch Appliance
ProcessorAMD GX-412TC 1.4 GHz Quad-Core x86
Memory & Storage4 GB DDR3 RAM, 16 GB mSATA SSD Storage
Serial Ports4 x RJ45 RS-232 (Cisco Straight Pinout, 50 to 230,400 bps)
Switch & Uplink Ports2 x RJ45 10/100/1000 Mbps, 2 x 1GbE SFP Fiber Combo Slots
Cellular ModemGlobal 4G LTE-A Pro (Cat-12 / Cat-6 support)
SIM SlotsDual Mini-SIM Slots (2FF)
USB Ports2 x USB 3.0 Type-A Host Ports, 2 x USB 2.0 Console Ports
Security & AuthTPM 2.0, IPSec, OpenVPN, TACACS+, RADIUS, Active Directory, SSH v2
Power SupplyExternal AC Power Supply (100–240V AC Input, 12V DC Output)
Power Consumption25 W Typical / Max
Operating Temperature5°C to 50°C (41°F to 122°F)
Certifications & ComplianceCE, FCC, RoHS, REACH, UL, TUV, C-Tick
