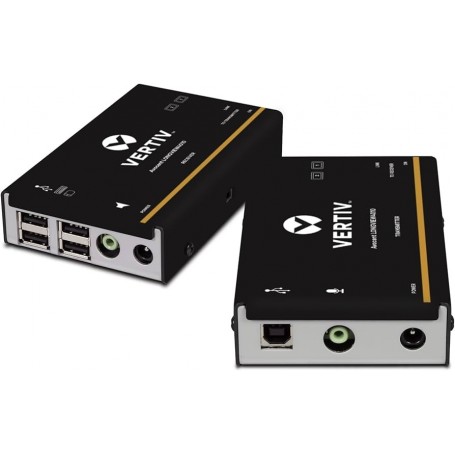

Vertiv LV3010P-001 Longview Single VGA USB Audio Catx 300M (LV3010P-001)

Vertiv LV3010P-001 Longview Single VGA USB Audio Catx 300M

Model No: LV3010P-001

$1,170.37

Black Box KVS4-2004VX NIAP4 4-Port Dual Head DP CAC Secure KVM Switch

Model No: KVS4-2004VX

$1,361.70
Vertiv SC940DPH-400 Cybex SC Universal DP/H Secure KVM Switch 4 Port (SC940DPH-400)

Vertiv SC940DPH-400 Cybex SC Universal DP/H Secure KVM Switch 4 Port

Model No: SC940DPH-400

$1,252.44

Black Box KVXLCHF-200 KVX Series HDMI Fiber KVM Extender, Dual Head, TX+RX

Model No: KVXLCHF-200

$1,068.58

Black Box KVS4-2004D Secure Switch 4-Port Dual Head DVI-I

Model No: KVS4-2004D

$1,065.05

Black Box KVXHP-200 True Plug and Play High-Performance Point-to-Point KVM Extension

Model No: KVXHP-200

$1,513.95
Eaton B070-016-19 NetCommander 16-Port Cat5 19-inch LCD KVM Switch (B070-016-19)

Eaton B070-016-19 NetCommander 16-Port Cat5 19-inch LCD KVM Switch

Model No: B070-016-19

$1,679.87

StarTech P4DD46A2-KVM-SWITCH 4-Port Dual-Monitor 4K 60Hz KVM Switch

Model No: P4DD46A2-KVM-SWITCH

$832.67

Opengear OM1304-4E – OM1300 Operations Manager (4 Serial, 4 GbE Switch, 2 GbE/SFP Uplinks)

Overview :

The Opengear OM1304-4E is an all-in-one, compact Operations Manager appliance purpose-built for edge locations, remote branch offices, retail sites, and space-constrained enclosures. By combining 4 software-selectable RJ45 RS-232 serial console ports, an integrated 4-port Gigabit Ethernet switch, and dual GbE/SFP combo uplinks into a single fanless 1U chassis, the OM1304-4E delivers resilient Smart Out-of-Band (Smart OOB™) management without needing separate switching hardware.

Powered by an ARM Cortex-A53 quad-core 1.6 GHz processor with 4 GB LPDDR4 RAM, 32 GB flash storage, and an embedded TPM 2.0 cryptoprocessor, the OM1304-4E natively supports modern edge automation workflows including Python scripting and Docker containerized applications. Managed centrally via Opengear Lighthouse software, network teams can remotely monitor, troubleshoot, and orchestrate critical IT infrastructure during primary network outages.

Key Features :

  • Integrated Serial & Ethernet Switching: Combines 4 RS-232 serial ports and a 4-port Gigabit Ethernet switch into a single compact edge appliance.

  • Flexible Combo Uplinks: Features 2 x combo 1GbE RJ45 / SFP ports for flexible copper or fiber network uplinks.

  • Software-Selectable Pinouts: 4 x RJ45 RS-232 ports support Cisco X1 or X2 pinouts directly via software configuration.

  • NetOps & Edge Automation: Built-in Docker container and Python runtime support enable automated local remediation and custom workflow scripts.

  • Hardware-Based Security: Integrated TPM 2.0 cryptographic chip safeguards system boot integrity, encryption keys, and credentials.

  • Centralized Management: Integrates seamlessly with Opengear Lighthouse for unified visibility and zero-touch deployment.

BrandOpengear
Model NumberOM1304-4E
SKUOM1304-4E
ConditionNew
Dimensions7 × 8.7 × 1.8 in
Weight3.2 lbs
Model / Part NumberOM1304-4E
Product SeriesOM1300 Operations Manager Series
Product TypeNetOps Out-of-Band Console & Switch Appliance
Form FactorCompact, Fanless 1U Half-Rack / Desktop
ProcessorARM Cortex-A53 Quad-Core @ 1.6 GHz
Memory & Storage4 GB LPDDR4 RAM, 32 GB Flash
Serial Console Ports4 x RJ45 RS-232 (Software-Selectable Cisco X1 / X2 Pinout)
Switched Ethernet Ports4 x RJ45 10/100/1000 Mbps Gigabit Ethernet
Uplink Interfaces2 x Combo 10/100/1000BASE-T RJ45 / 1000BASE-X SFP Slots
USB Ports2 x USB 3.0 Type-A Host Ports
Security & AuthTPM 2.0, IPSec, OpenVPN, SSH v2, TACACS+, RADIUS, Active Directory
Automation SupportDocker Container Engine, Python Runtime
Power SupplyExternal AC/DC Power Adapter (12V DC Input, Threaded Barrel Jack)
Operating Temperature5°C to 50°C (41°F to 122°F)
Certifications & ComplianceCE, FCC, RoHS, REACH, TPM 2.0
