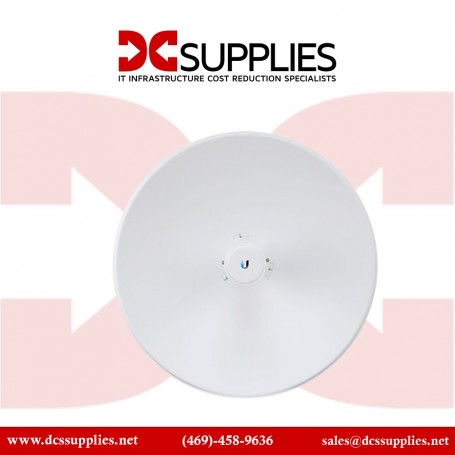

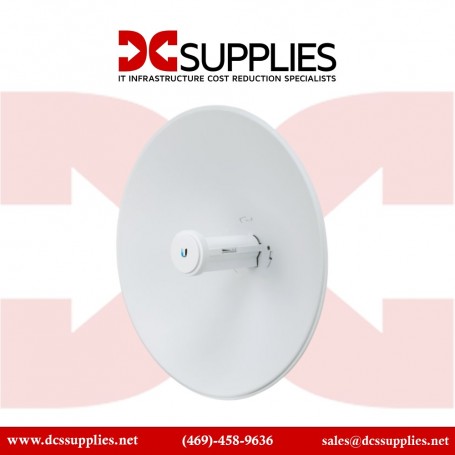

Ubiquiti PBE-5AC-Gen2-US
airMAX AC 5 GHz Gen2 High Performance Bridge
The Ubiquiti PBE-5AC-Gen2-US airMAX AC High Performance Bridge is a powerful wireless bridging solution built for high-throughput, long-distance connections. Designed for point-to-point and point-to-multipoint applications, it operates on the 5 GHz band with proprietary airMAX AC technology to deliver stable, low-latency network performance even in interference-prone environments.
Features :
This wireless bridge delivers up to 450 Mbps throughput with airMAX AC technology, leveraging the 5 GHz band to minimize RF interference. Its integrated 25 dBi directional antenna provides long-range connectivity, while the ±20° adjustable mounting bracket enables precision alignment for optimal signal strength. The device is powered via passive PoE (24V, 1A), simplifying installation without additional power cabling.
Advanced Options :
The PBE-5AC-Gen2 includes a dedicated Wi-Fi radio for simple remote management and diagnostics without interfering with primary network traffic. Installation is streamlined with a toolless feed alignment system and a redesigned mounting bracket. Built for challenging outdoor environments, it features a rugged, UV-resistant plastic enclosure that operates reliably in temperatures ranging from -40°C to 70°C (-40°F to 158°F).
Product Key Features
- Up to 450 Mbps throughput with airMAX AC
- 5 GHz band minimizes RF interference
- 25 dBi directional antenna for long-range connectivity
- ±20° adjustable mounting bracket for precision alignment
- Dedicated Wi-Fi radio for simple remote management
- Durable UV-resistant enclosure for outdoor deployments
Reliability & Performance :
The PBE-5AC-Gen2 is engineered for performance and resilience in challenging outdoor environments. Its narrow beamwidth antenna focuses energy where it’s needed, increasing noise immunity and link reliability. With a maximum transmission power of 23 dBm and long-distance support of up to 15 km, this bridge handles real-world interference and environmental extremes with ease. The UV-resistant enclosure ensures durability against harsh weather conditions, while the passive PoE power option simplifies deployment in remote locations.
Key Features :
- High-performance airMAX AC technology
- 5 GHz band with up to 450 Mbps data rate
- 25 dBi dual-polarized directional antenna
- Dedicated Wi-Fi radio for configuration
- Passive PoE powered (24V, 1A)
- ±20° adjustable mounting for alignment
- Long-range point-to-point or bridging up to 15 km
- Rugged enclosure for outdoor use
