APC AP4432A – Automatic Transfer Switch 30 A 200/208 V

Overview

The APC AP4432A is a rack‑mount automatic transfer switch (ATS) engineered to maintain AC power continuity for single‑corded load segments in data racks by switching between redundant power sources without operator intervention. It’s deployed by data center engineers, facilities personnel, and electrical integrators where uptime and controlled power transfer are required between dual utility feeds or between utility and UPS sources.

This ATS is rated for a 30 A continuous input current at 200 / 208 V AC and supports a total power capacity up to ~4992 VA. It accepts two high‑current inputs and presents switched outputs to connected load devices, enabling uninterrupted service when one input source fails or is unavailable.

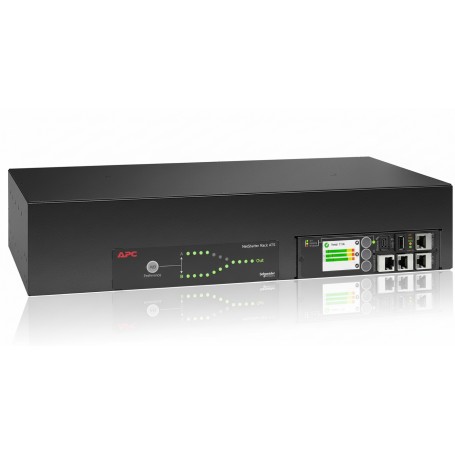

Physically, the unit occupies 2U of rack space and includes a robust mechanical switching mechanism designed for enterprise rack deployment. It integrates a field‑replaceable network management card (NMC3) for remote status, configuration, and logging via common management interfaces.

Installation is in horizontal orientation within server or network cabinets, adjacent to loads requiring automatic source switching. Standard ATS use cases include redundant mains feeds in backbone closets, perimeter wiring closets, and core IT racks where service continuity is required without manual power reconfiguration.

The AP4432A is not a power generator or UPS; it does not supply energy during a sustained mains outage. It transitions the load between sources automatically but relies on the availability of one of the incoming AC feeds.

Key Features

• Automatic rack‑mount transfer switch for dual utility/UPS feeds
• 30 A rated continuous current at 200 / 208 V AC
• Dual NEMA L6‑30P inlet connections for redundant sources
• 16 IEC C13 + 2 IEC C19 switched outlets
• Field‑replaceable NMC3 for remote management
