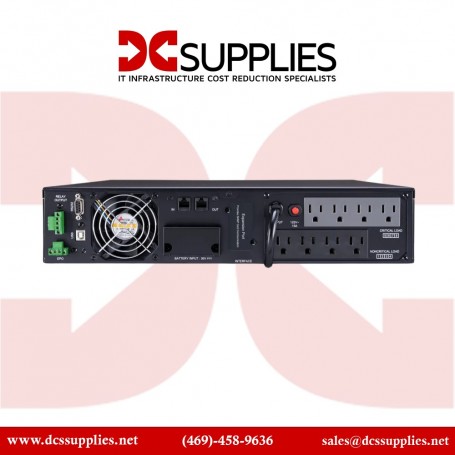

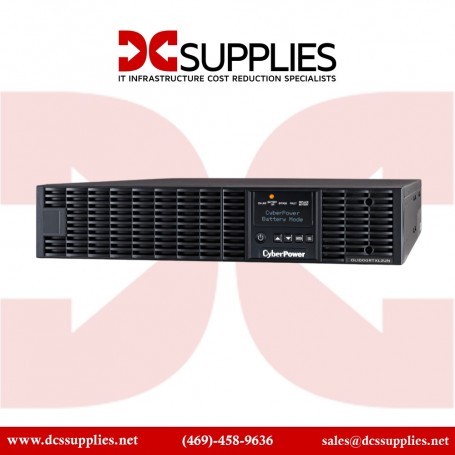

CyberPower OL1000RTXL2UN
Smart App Online UPS System (1000VA/900W)
The CyberPower OL1000RTXL2UN is a versatile and reliable online UPS tailored for demanding data center and enterprise environments. With a 1000VA/900W capacity, pure sine wave output, and advanced remote management features via the pre-installed network card, it ensures continuous, high-quality power delivery for critical devices such as servers, networking equipment, and VoIP systems. Its space-efficient 2U rackmount form factor, combined with intelligent management and quick recharge capabilities, makes it an ideal solution for safeguarding your essential infrastructure.
Overview :
This UPS employs double conversion topology, providing seamless transfer and eliminating transfer time during power disturbances. The integrated LCD panel offers real-time insights into load levels, battery status, input/output voltages, and temperature, enabling proactive management. The unit supports optional Extended Battery Modules (EBM), which expand runtime during outages, and features an ECO Mode that increases efficiency to over 94%, reducing energy costs. Equipped with multiple connectivity options—including SNMP management, USB ports, serial port, and dataline protections (RJ-45, RJ-11)—the OL1000RTXL2UN allows for comprehensive remote supervision and integration into network management systems. Its UL 1778 certification assures compliance with safety standards, making it suitable for critical enterprise applications.
Features :
The OL1000RTXL2UN is an advanced UPS system with features designed for high-end IT applications.
Product Key Features
- 1000VA / 900W capacity with pure sine wave output
- Double conversion online topology for continuous, clean power
- 2U rackmount design suitable for data centers and IT environments
- Built-in RMCARD205 network management card for remote monitoring and management
- Extensive connectivity: USB, serial, RJ-45, RJ-11 ports
- Supports Extended Battery Module (EBM) for longer runtime
- Fast Charge Technology for rapid battery recovery
- Energy-efficient ECO Mode (>94% efficiency)
- User-friendly LCD display showing real-time load, runtime, battery, input/output voltages, and more
- Includes surge protection and EMI/RFI noise filtering
Reliability & Performance :
The UPS provides approximately 20 minutes of runtime at half load and about 7.4 minutes at full load, sufficient for safe shutdowns or power transfer procedures. Its surge energy rating of 1780 Joules offers strong transient suppression. The unit’s sound emission is around 55 dB(A), which is acceptable for most office or data center environments. Its transfer time is virtually instantaneous (0 ns), ensuring no interruption during power events.
Key Features :
- 1000VA / 900W capacity with pure sine wave output
- Double conversion online topology for continuous, clean power
- 2U rackmount design suitable for data centers and IT environments
- Built-in RMCARD205 network management card for remote monitoring and management
- Extensive connectivity: USB, serial, RJ-45, RJ-11 ports
- Supports Extended Battery Module (EBM) for longer runtime
- Fast Charge Technology for rapid battery recovery
- Energy-efficient ECO Mode (>94% efficiency)
- User-friendly LCD display showing real-time load, runtime, battery, input/output voltages, and more
- Includes surge protection and EMI/RFI noise filtering
