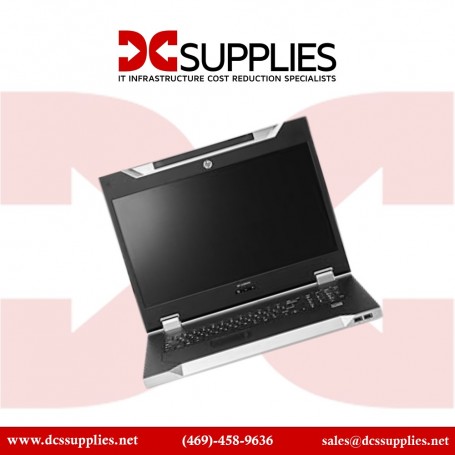

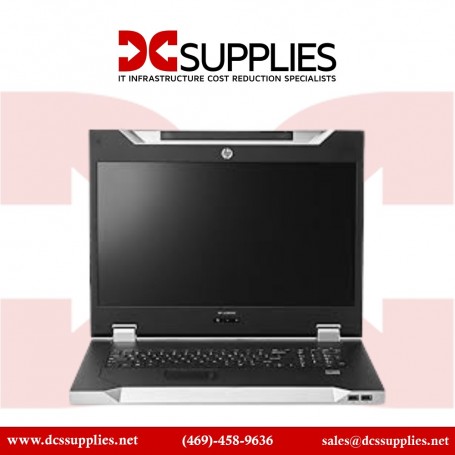

HPE 776634-001

LCD8500 1U US Rackmount Console Kit (18.5″ LCD + Keyboard/Touchpad)

The HPE 776634‑001 (also known as AF630A) is an LCD8500 1U Rackmount KVM console kit integrating an 18.5″ BrightView TFT LCD display (WXGA resolution) with a full keyboard and touchpad in a compact 1U form factor. Engineered for enterprise use, it allows direct rack access with space-saving design, supporting most common video resolutions up to 1600×1200 at 60–75 Hz. The unit includes two USB ports for plug-and-play connectivity with behind-mounted KVM switches and supports virtual media features. Its durable silver chassis, tool-less mounting rails, and “lid switch” backlight off/on design enhance usability and longevity

Features

The LCD8500 combines a full-size keyboard and three‑button touchpad with scroll keys and Windows shortcuts, integrated into a fold‑up 18.5″ active‑matrix TFT LCD display. It supports video resolutions from VGA up to1600×1200 at refresh rates between 60 and 75 Hz, ensuring clear, flicker‑free visuals in rack environments. Two front-mounted USB Type‑A ports enable connection to KVM console switches with virtual media support, simplifying peripheral access when mounted behind the display.Designed for ease of deployment, the unit includes tool‑less sliding rails for quick installation into standard 19″ racks. The integrated “lid switch” feature automatically turns off the backlight when closed and restores it when opened—helpful for energy savings and display longevity. The silver enclosure enhances rack visibility while ergonomic layout ensures operator comfort. Ideal for data centers and network closets, the model supports mounting of compatible KVM switches directly behind the console kit.

Advanced Options

Engineered for high-density rack environments, the LCD8500 delivers dependable on-site access with rugged hardware and intuitive design. The active-matrix display ensures crisp visuals with minimal latency—ideal for setup, diagnostics, and local CLI access. The lid-switch function helps preserve component lifespan and reduces power use, while USB virtual media integration streamlines firmware updates or OS installation workflows via KVM switch behind the console.
