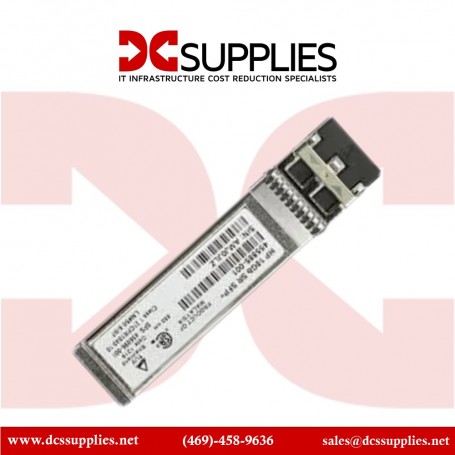

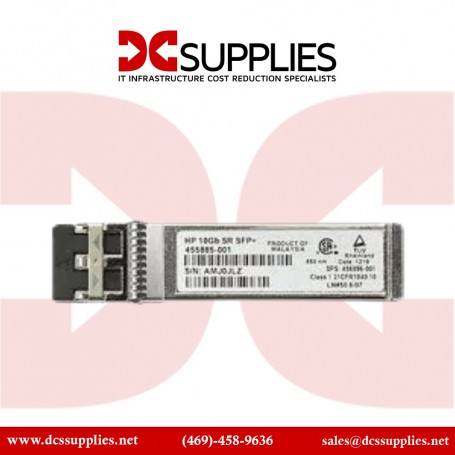

HPE C3N53AA
Intel 10 GbE SFP+ SR Transceiver module
The HPE C3N53AA is a high‑performance 10 Gigabit Ethernet SR SFP+ Transceiver module engineered by Intel for short-rangemultimode fiber links. Supporting 10 Gb/s data rates over 300 meters of OM3 fiber (and ~400 m over OM4), it features an 850 nm VCSEL transmitter and duplex LC connectors. With plug‑and‑play compatibility on HPE ProLiant, Aruba, and switch platforms fitted with SFP+ slots, the C3N53AA provides reliable uplinks, server-to-switch fiber connections, and SAN traffic support in data center or enterprise environments.
Features
Operating under IEEE 802.3ae (10GBase-SR) standards, this compact, hot‑pluggable SFP+ module delivers full-duplex 10 GbE over multimode fiber and complies with the SFP MSA and SFF‑8472 specifications. It incorporates Digital Diagnostic Monitoring (DDM) via I²C for real-time feedback on optical power, temperature, and voltage. Rated for commercial temperature (0–70 °C), the C3N53AA supports consistent fiber performance with optical sensitivity down to –13 dBm and transmit power between –6.5 to –0.5 dBm. Compatible with HPE -compatible switches and servers, it offers both new and refurbished options.
Advanced Options
Designed for robust data center operations, the C3N53AA maintains line-rate 10 Gbps performance with low latency across multimode fiber links. Integrated DDM enables proactive optical health monitoring, helping to prevent link degradation.
Product Key Features
-
10 GbE SR SFP+ transceiver, 850 nm VCSEL
-
Reach up to ~300 m over OM3; ~400 m over OM4 MMF
-
Duplex LC connector, hot‑pluggable form factor
-
Digital Diagnostic Monitoring (DDM/DOM) via I²C
-
IEEE 802.3ae, SFP MSA, SFF‑8472 compliant
-
OEM-tested compatibility with HPE platforms
Reliability & Performance
Its industrial-grade construction, thermal stability, and strict compliance with optical standards ensure reliable operation in dense switch and server environments. Both new and refurbished units meet OEM testing standards and come with warranty coverage for peace of mind.
Key Features :
-
10 Gb/s over multimode fiber (10GBase‑SR)
-
Duplex LC connector, fiber mode OM3/OM4
-
850 nm VCSEL transmitter
-
Hot‑pluggable SFP+ module
-
Digital Diagnostics Monitoring (DDM via I²C)
-
300 m reach on OM3 (~400 m on OM4)
-
OEM-tested HPE compatibility
