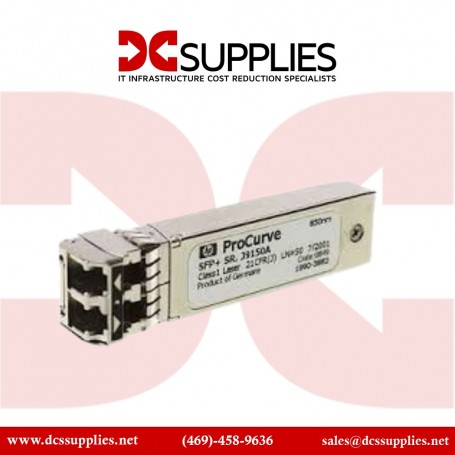

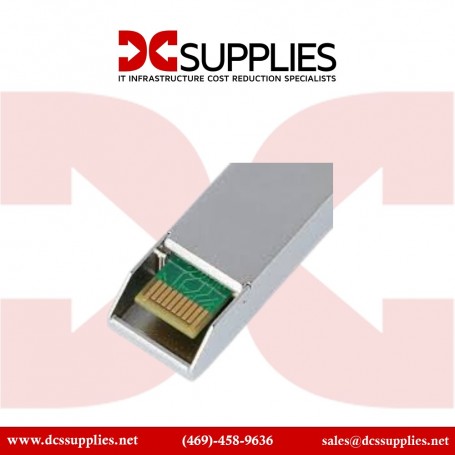

HPE J9150AS
(X132) 10 GbE SFP+ LC SR Transceiver module
The HPE J9150AS module (also known as X132) is a high-performance 10 Gigabit Ethernet SFP+ transceiver designed for multimode fiber short-reach deployments. Operating at an 850 nm wavelength, it supports link distances up to 300 meters using OM3 fiber (or up to 400 m over OM4), making it ideal for data centers, campus backbones, and server-switch interconnects. Compatible with ProCurve, Aruba , and HPE networking gear, this module delivers reliable, low-latency connectivity in a compact, hot-swappable LC form factor.
Features
Engineered to meet IEEE 802.3ae 10GBase-SR standards, this transceiver supports data rates from 1.25 to 10.31 Gbps and is equipped with Digital Diagnostics Monitoring (DDM/DOM) via I²C. The module is intended for use in SFP+ ports with duplex LC connectors, enabling plug-and-play installation without system interruption. Certified to operate in environments with ambient temperatures from 0 °C to 70 °C, it is fully RoHS compliant and supports EMI-reducing metal enclosure design. Compatible with HPE and Aruba equipment such as ProCurve 5400zl, 8200zl, 2920, and various Gen8/9 blade and switch models.
Advanced Options
Built for stable short-range high-speed links, the J9150AS delivers line-rate 10 GbE connectivity with minimal latency and guaranteed optical performance (minimum optical budget approx. 4.6 dB). With transmitter power between −6.5 dBm and −1 dBm, and receiver sensitivity near −11 dBm,
Product Key Features
-
Supports 10 Gigabit Ethernet over multimode fiber (850 nm VCSEL)
-
Works over LC duplex connectors up to 300 m (OM3) or 400 m (OM4)
-
Data-rate range: 1.25–10.31 Gbps with full-duplex operation
-
Includes Digital Diagnostics Monitoring (DDM/DOM) support
-
Hot-swappable SFP+ plug-in form factor
-
Compatible with a wide range of HPE /Aruba switches and NICs
Reliability & Performance
it ensures error-free transmission across industry-standard OM3/OM4 fiber. Its robust metal housing and strict adherence to SFF‑8431 standards support reliability and EMI suppression. Fully compliant with IEEE, RoHS, FDA, and IEC60825-1 safety requirements, it offers durable performance backed by warranty and consistent vendor-tested compatibility.
Key Features :
-
-
10 GbE Short‑Reach SR over multimode fiber
-
850 nm VCSEL transmitter, duplex LC interface
-
Supports 300 m (OM3 fiber), up to 400 m (OM4 fiber)
-
Digital Diagnostics Monitoring (DDM/DOM)
-
Hot-swappable SFP+ module (X132 form factor)
-
Compatible with HPE /Aruba ProCurve switch series
-
