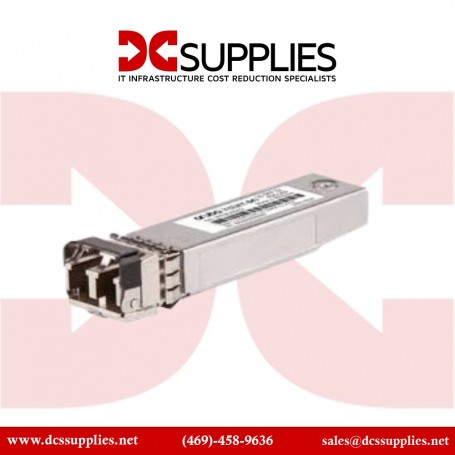

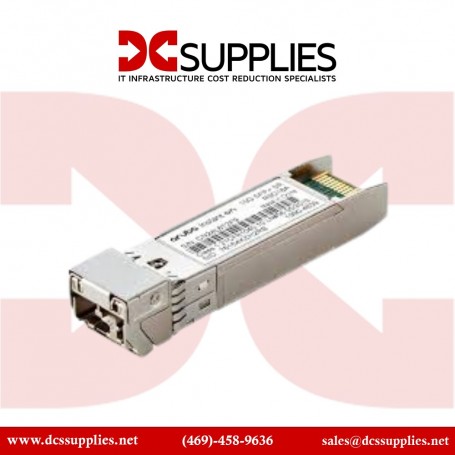

HPE R9D18-61001
Aruba Instant On 10 GbE SFP+ LC SR 300 m (OM3 MMF) Transceiver
The HPE R9D18‑61001, also known as R9D18A, is a single-port 10 Gigabit Ethernet SR SFP+ Transceiver for Aruba Instant On switches Designed for short-range fiber connections, it supports link distances up to 300 meters over OM3 multimode fiber and approximately 400 m over OM4. Utilizing a duplex LC interface and a 850 nm VCSEL transmitter, it offers high-performance, low-latency connectivity for uplinks, switch interlinks, or server-to-switch links in SMB or data center environments.
Features
This compact SFP+ module adheres to IEEE 10GBase-SR standards and supports 1.25–10.31 Gbps data rates. It integrates into Instant On switch SFP+ ports (up to four on models like the 1930 series) and operates hot-swappable without disrupting the system. Equipped with Digital Diagnostic Monitoring (DDM/DOM), it provides real-time information on optical power, temperature, and voltage. Its small form factor (0.5 × 0.6 × 2.2 in) and lightweight design (~20 g) enable easy deployment in compact switch layouts.
Advanced Options
Built for high-reliability networking, the R9D18‑61001 delivers full 10 Gbps performance with consistent optical budget (~4.6 dB) across multimode fiber links. The integrated DDM enables proactive monitoring of signal health, temperature,
Product Key Features
-
Supports 10 GbE SR over duplex LC OM3/OM4 fiber
-
Maximum reach of ~300 m over OM3, up to ~400 m on OM4
-
Hot-swappable SFP+ form factor for easy insertion
-
DDM diagnostics support for performance monitoring
-
Compatible with all Aruba Instant On switches supporting 10 GbE SFP+
-
Compact and low-power (<3.5 W typical)
Reliability & Performance
and voltage. Encased in rugged metal housing compliant with SFF‑8431 standards, it withstands typical networking operating conditions (0–70 °C). Ideal for uplinks within Instant On deployments, the module ensures dependable, low-latency fiber connectivity without requiring switch or firmware alterations.
Key Features :
-
10 GbE 10GBase‑SR over OM3/OM4 multimode fiber
-
Duplex LC connector interface
-
Up to ~300 m on OM3 (400 m on OM4)
-
Digital Diagnostics Monitoring (DDM/DOM) via I²C
-
Hot-swappable SFP+ form factor
-
Aruba Instant On switch compatibility
