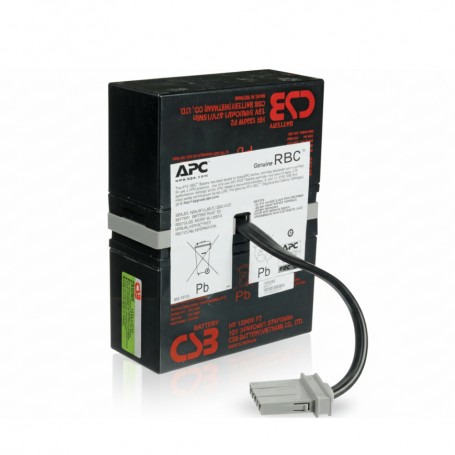

APC RBC33 Replacement Battery Cartridge 33 (RBC33)

APC RBC33 Replacement Battery Cartridge 33

Model No: RBC33

Belkin CAA004BT1MBK Boost Charge Braided USB-C to Lightning Cable (CAA004BT1MBK)

Belkin CAA004BT1MBK Boost Charge Braided USB-C to Lightning Cable

Model No: CAA004BT1MBK

$17.46

Bosch NDA-5081-PIP 110mm Interface Plate for FLEXIDOME Micro 3000i

Model No: NDA-5081-PIP

Xerox 106R03737 Black Extra High Capacity Toner Cartridge

Model No: 106R03737

$178.66
APC AP5719 19 inch Rack Unit Keyboard/Mouse LCD Console (AP5719)

APC AP5719 19 inch Rack Unit Keyboard/Mouse LCD Console

Model No: AP5719

Vertiv SA1-02003 Geist Passive 2U Switchair (SA1-02003)

Vertiv SA1-02003 Geist Passive 2U Switchair

Model No: SA1-02003

$228.55

Xerox 101R00582 Drum Cartridge for VersaLink B600/B605/B610/B615

Model No: 101R00582

$75.77
Logitech ERGONOMIC-BUNDLE-TEAMS Workstation Peripheral Kit (ERGONOMIC-BUNDLE-TEAMS)

Logitech EXECUTIVE-BUNDLE-UC Workstation Peripheral Kit

Model No: EXECUTIVE-BUNDLE-UC

Opengear OM1308-8E-C – OM1300 Operations Manager (8 Serial, 8 GbE Switch, Global 5G Sub-6 Cellular)

Overview :

The Opengear OM1308-8E-C is an all-in-one, compact Operations Manager appliance designed for edge environments, remote branch offices, retail locations, and industrial deployments. By integrating 8 software-selectable RJ45 RS-232 serial console ports, a managed 8-port Gigabit Ethernet switch, and an integrated Global 5G Sub-6 / 4G LTE Cat 20 cellular modem into a single fanless 1U chassis, the OM1308-8E-C delivers resilient Smart Out-of-Band (Smart OOB™) management and primary WAN failover without requiring separate switching or wireless gateway hardware.

Powered by an ARM Cortex-A53 quad-core 1.6 GHz processor with 4 GB LPDDR4 RAM, 32 GB eMMC flash storage, and an embedded TPM 2.0 cryptoprocessor, the OM1308-8E-C natively supports edge automation workflows including Python scripting and Docker containerized applications. Featuring dual nano-SIM slots for carrier-level cellular redundancy, NetOps teams can manage, automate, and orchestrate the unit remotely through Opengear Lighthouse software to ensure uninterrupted network visibility during primary WAN outages.

Key Features :

  • Integrated Serial, Switching & 5G: Combines 8 software-selectable RS-232 serial ports, an 8-port GbE switch, and global 5G/4G cellular failover into a single platform.

  • Global 5G Cellular Failover: Features an integrated 5G Sub-6 GHz / LTE Cat 20 modem with dual nano-SIM slots for automatic WAN backup.

  • Dual Gigabit Uplinks: Equipped with 2 x combo 1GbE RJ45 / SFP ports for flexible wired primary and backup connections.

  • NetOps & Edge Automation: Supports Docker containers and Python scripts directly on the appliance for local automated remediation and zero-touch provisioning.

  • Enterprise Hardware Security: Integrated TPM 2.0 module safeguards encryption keys, system integrity, and secure boot operations.

  • Centralized Orchestration: Integrates seamlessly with Opengear Lighthouse for unified management and cloud-based orchestration.

BrandOpengear
Model NumberOM1308-8E-C
SKUOM1308-8E-C
ConditionNew
Dimensions7.44 × 8.66 × 1.73 in
Weight3.64 lbs
Model / Part NumberOM1308-8E-C
Product SeriesOM1300 Operations Manager
Product TypeOut-of-Band Console Manager / Switch Appliance
ProcessorARM Cortex-A53 Quad-Core @ 1.6 GHz
Memory & Storage4 GB LPDDR4 RAM, 32 GB eMMC Flash
Serial Ports8 x RJ45 RS-232 (Software Selectable Cisco X1/X2 Pinout)
Switch Ports8 x RJ45 10/100/1000 Mbps Gigabit Ethernet
Uplink Ports2 x Combo 1000BASE-T RJ45 / 1000BASE-X SFP
Cellular Modem5G NR NSA/SA Sub-6 GHz / 4G LTE Cat 20 (Global Bands)
SIM Slots2 x Nano SIM (4FF) Slots
Antenna Connectors4 x External Detachable Cellular Antennas
Local Console Port1 x USB-C Console Port
USB Ports2 x USB 3.0 Type-A Host Ports
Security & AuthTPM 2.0, IPSec, OpenVPN, TACACS+, RADIUS, Active Directory
Power SupplyExternal AC/DC Power Adapter (12V DC Input)
Operating Temperature5°C to 50°C (41°F to 122°F)
CertificationsCE, FCC, RoHS, REACH, C-Tick
