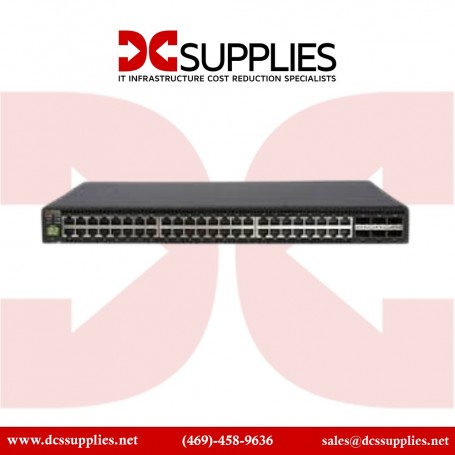

Ruckus ICX7750-48F – 48-Port 10GbE SFP+ Switch with 6x 40GbE QSFP+
Overview :
The Ruckus ICX7750-48F is a high-performance Layer 3 managed switch designed for enterprise core and aggregation deployments. It features 48 fixed 10GbE SFP+ ports and 6 40GbE QSFP+ ports, providing a total switching capacity of 1.92 Tbps and a forwarding rate of up to 1.44 billion packets per second. The switch supports stacking of up to 12 units, offering an aggregate stacking bandwidth of 5.76 Tbps. It includes advanced Layer 3 features such as static routing, RIP, OSPF, BGP, and VRF, making it suitable for complex network architectures. The ICX7750-48F also supports Multi-Chassis Trunking (MCT), Campus Fabric, and VXLAN, enabling flexible and scalable network designs. Redundant power supplies and hot-swappable fans ensure high availability and reliability. This switch is ideal for data centers, campus core networks, and high-density environments requiring high throughput and low latency.
Key Features :
-
48 x 10GbE SFP+ Ports: High-density connectivity for demanding applications.
-
6 x 40GbE QSFP+ Ports: Flexible uplink options for aggregation and backbone connections.
-
Stacking Support: Up to 12 units with 5.76 Tbps aggregate bandwidth.
-
Advanced Layer 3 Features: Includes static routing, RIP, OSPF, BGP, VRF, and VXLAN.
-
Redundant Power and Cooling: Hot-swappable power supplies and fans for enhanced reliability.
