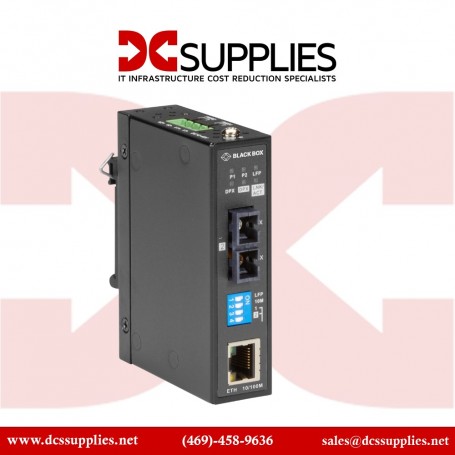

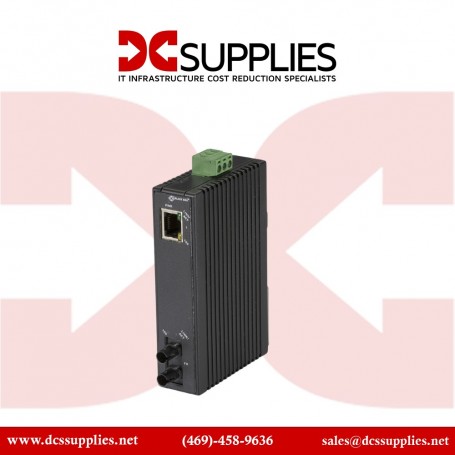

Black Box?LMC282A
Fast Ethernet Industrial?Media Converter Single-Mode SC
The?Black Box LMC282A Industrial?Media Converter provides a cost-effective solution to extend your?Ethernet network over long distances using single-mode fiber. Built for industrial settings, it guarantees reliable connectivity and high performance even in the toughest environments.
Features :
Designed to convert 10/100 Mbps Ethernet?to 100BaseFX fiber, the LMC282A features SC connectors optimized for single-mode fiber applications. Its MDI/MDIX auto detection simplifies installation by automatically adjusting for crossover or straight-through cables. The tough IP-30 rated enclosure ensures durability against dust, moisture, and physical impacts.
Advanced Options :
This?Media Converter supports a wide operating temperature range from -40? to 158?F (-40? to 70?C), making it suitable for outdoor, industrial, or remote locations. Its dual power inputs accept a broad voltage range (12-48 VDC), providing redundancy and ensuring continuous operation even if one power source fails. The link fault pass-through feature enhances network reliability by shutting down the active link immediately when a failure occurs, allowing network management software to detect and respond quickly to issues, thereby maximizing uptime.
Product Key Features
- Converts 10/100Base-T(X) to 100BaseFX over single-mode fiber with SC connector
- Supports MDI/MDIX auto detection, eliminating the need for crossover cables
- Rugged IP-30 housing suitable for industrial applications
- Wide operating temperature range: -40? to 158?F (-40? to 70?C)
- Dual wide-voltage power inputs (12 to 48 VDC) for reliable power redundancy
- Link fault pass-through for maximum network uptime
- Ensures consistent performance in demanding environments
Reliability & Performance :
Built for industrial environments, the LMC282A offers stable, high-performance fiber-to-Ethernet?conversion. Its robust construction, combined with advanced fault detection and dual power inputs, ensures continuous operation under challenging conditions. It is an ideal choice for backbone extensions, remote site connectivity, and mission-critical industrial networks.
Key Features :
- Converts 10/100Base-T(X) to 100BaseFX single-mode fiber
- SC connector for single-mode fiber communication
- MDI/MDIX auto detection for simplified installation
- Rugged IP-30 enclosure withstands harsh environments
- Wide temperature range: -40?F to 158?F (-40?C to 70?C)
- Dual power inputs (12-48 VDC) for redundancy
- Link fault pass-through for increased network reliability
- Suitable for outdoor, industrial, and remote deployments
