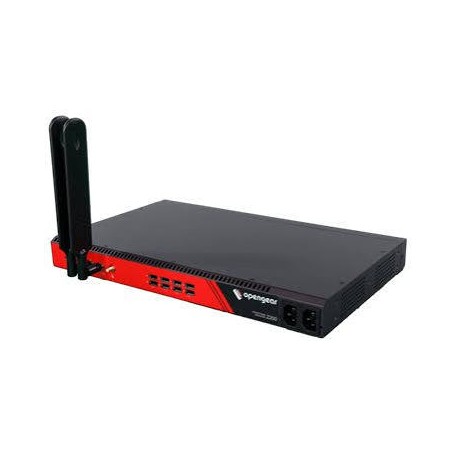

Opengear OM2232-L-C14 32-Port NetOps Console Server (OM2232-L-C14)

Opengear OM2232-L-C14 32-Port NetOps Console Server

Model No: OM2232-L-C14

Opengear CM8004 4-Port Compact OOB Console Server (CM8004)

Opengear CM8004 4-Port Compact OOB Console Server

Model No: CM8004

$876.04

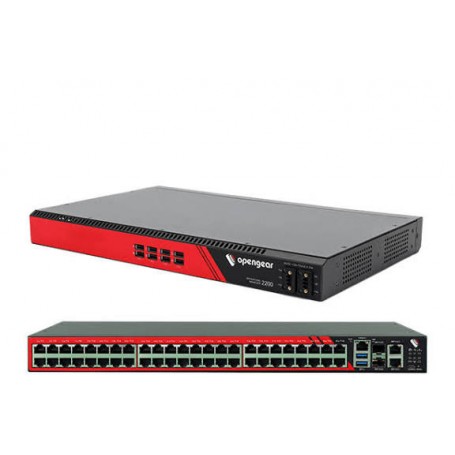

Opengear OM2224-24E-DDC Operations Manager console server (OM2224-24E-DDC)

Opengear OM2224-24E-DDC Operations Manager console server

Model No: OM2224-24E-DDC

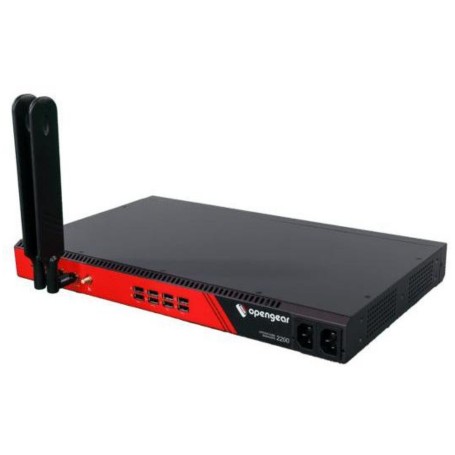

Opengear OM2248-L Operations Manager Console Server (OM2248-L)

Opengear OM2248-L Operations Manager Console Server

Model No: OM2248-L

Opengear CM7148-2-DAC-US Console Server (CM7148-2-DAC-US)

Opengear CM7148-2-DAC-US Console Server

Model No: CM7148-2-DAC-US

Opengear ACM7004-5-GLB – ACM7000 Resilience Gateway (4 Serial, 4 USB, 4-Port GbE Switch, SFP Uplink)

Overview :

The Opengear ACM7004-5-GLB is a compact, high-density Resilience Gateway engineered to provide secure Smart Out-of-Band (Smart OOB™) management and local network switching for critical IT infrastructure at edge locations, branch offices, retail sites, and server rooms. By integrating 4 RJ45 RS-232 serial console ports, 4 USB 2.0 console ports, and a managed 4-port Gigabit Ethernet switch with an additional GbE/SFP combo uplink, the ACM7004-5-GLB consolidates out-of-band management and local LAN access into a single desktop or rack-mountable appliance.

Powered by an 800 MHz Marvell Armada 370 ARMv7 SoC with 256 MB DDR3 RAM, 32 MB NOR flash, and 4 GB internal NAND flash storage, the ACM7004-5-GLB delivers robust edge intelligence and automated response capabilities. Integrated digital I/O interfaces allow physical security and environmental monitoring via external sensors. Managed centrally through Opengear Lighthouse software, it ensures network operations teams maintain uninterrupted access to remote routers, switches, firewalls, and PDUs during primary WAN outages.

Key Features :

  • Integrated Console & Switching: Combines 4 RS-232 serial ports, 4 USB console ports, and a 4-port Gigabit Ethernet switch in one appliance.

  • Smart Out-of-Band (Smart OOB™) Access: Delivers secure, remote access to network infrastructure via SSH, HTTPS, or web terminal.

  • Flexible Combo Uplink: Equipped with 1 x GbE RJ45 / Gigabit SFP Fiber combo port for flexible primary network connectivity.

  • Environmental & Security Monitoring: Includes 2 TTL Digital I/O ports and 2 High-Voltage Digital Outputs for dry contact sensors (water, smoke, motion) and alarm relays.

  • Enterprise Security & Encryption: Features a FIPS 140-2 validated cryptographic module, IPSec, OpenVPN, TACACS+, RADIUS, and LDAP support.

  • Global Power Kit: Includes an external 110–240V AC to 12V DC power adapter with universal regional plug adapters.

BrandOpengear
Model NumberACM7004-5-GLB
SKUACM7004-5-GLB
ConditionNew
Dimensions4.7 × 5.1 × 1.4 in
Weight1.3 lbs
Model / Part NumberACM7004-5-GLB
Product SeriesACM7000 Series Resilience Gateway
Product TypeConsole Server / Resilience Gateway
ProcessorMarvell Armada 370 ARMv7 SoC @ 800 MHz
Memory & Storage256 MB DDR3 RAM, 32 MB NOR Flash, 4 GB Internal NAND Flash
Serial Ports4 x RJ45 RS-232 (Cisco Straight Pinout, 50 to 230,400 bps)
USB Ports4 x USB 2.0 Console Ports
Integrated Switch4 x RJ45 10/100/1000 Mbps Gigabit Ethernet Ports
Uplink Interface1 x Combo 10/100/1000 Mbps RJ45 / Gigabit SFP Fiber Port
Digital I/O2 x TTL Digital I/O (5V DC max @ 20mA), 2 x High-Voltage Outputs (5-30V DC @ 100mA)
Security & AuthFIPS 140-2 validated OpenSSL, IPSec, OpenVPN, SSH v2, TACACS+, RADIUS, LDAP
Input Voltage110 – 240 V AC External Power Supply (12V DC Output)
Power ConsumptionLess than 11.5 W
Operating Temperature-25°C to +60°C (-13°F to +140°F)
Certifications & ComplianceCE, UL 1950, TUV, RoHS, FCC Part 15, C-Tick, TAA Compliant
